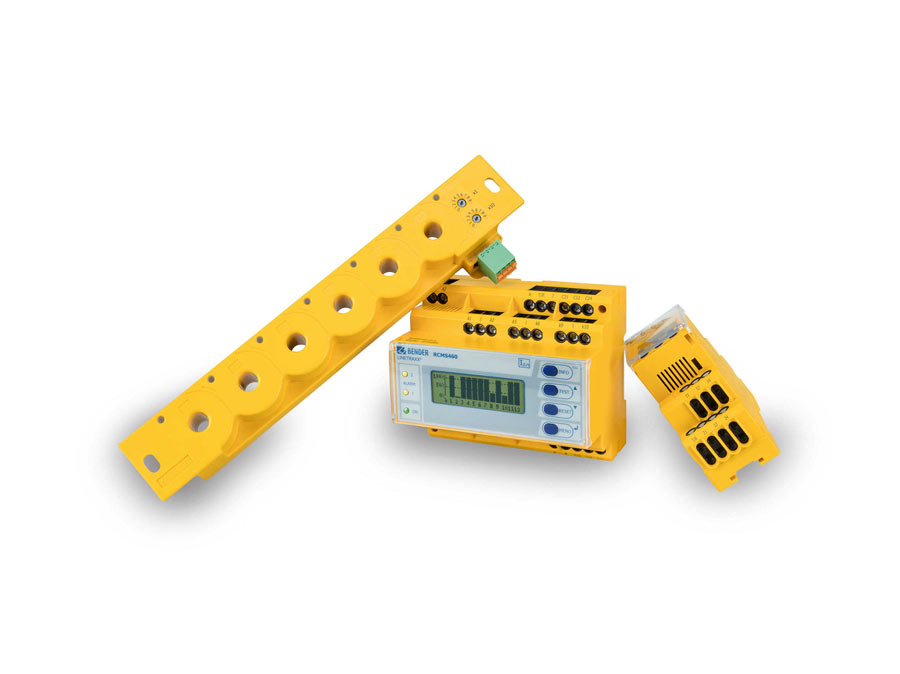

Ground-Fault Monitoring for Grounded Systems
Ground-fault products are used to monitor grounded systems (ungrounded and grounded) for fault currents or residual currents. The sum of all conductors except the protective earth conductor is measured by means of measuring current transformers.
In general, ground-fault monitors (RCM - residual current monitors) are used to send a message to the user even before reaching the shutdown threshold of the GFCI. Ground-fault monitors detect deteriorations of the insulation level at an early stage and in a reliable way.
21 Products found

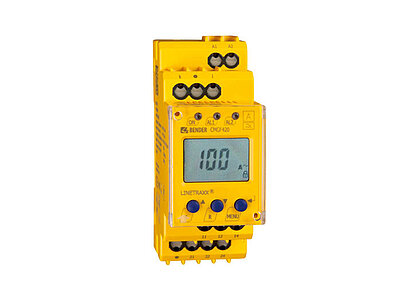

CMGF420
Digital service entrance ground-fault relay

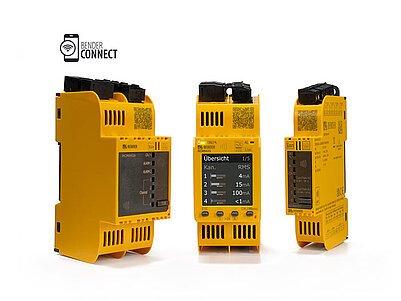

LINETRAXX® SmartDetect RCMS410
Four-channel DC, AC and pulse current sensitive residual current monitor for earthed AC, AC/DC and DC systems
LINETRAXX® RCMS460-D Blindspot®
Multi-channel AC/DC ground-fault monitor
LINETRAXX® RCMS460-L Blindspot®
Multichannel AC, pulsed DC and AC/DC sensitive ground-fault monitor
LINETRAXX® RCMS490-D Blindspot®
Multi-channel AC/DC ground-fault monitor with individual relay outputs
LINETRAXX® RCMS490-L Blindspot®
Multichannel AC, pulsed DC and AC/DC sensitive ground-fault monitor with one alarm contact per channel

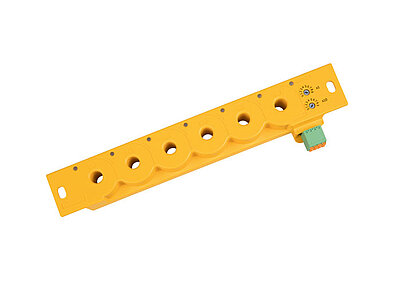

LINETRAXX® RCMS150 Series
AC/DC sensitive ground-fault monitor (type B) with 6 integrated measuring current transformers
LINETRAXX® MRCDB300 Series
AC/DC sensitive residual current monitoring modules for MRCD applications

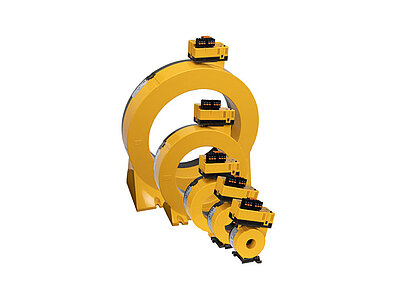

LINETRAXX® RCMB300 Series
AC/DC sensitive residual current monitoring modules for monitoring applications

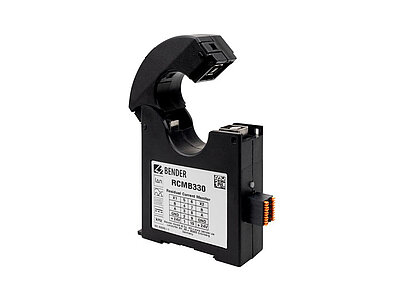

LINETRAXX® RCMB330
AC/DC sensitive residual current monitoring module with integrated split-core measuring current transformer
RCMB104
AC/DC sensitive residual current monitoring module for electric vehicle charging systems
RDC104-4
DC sensitive residual current monitoring module for electric vehicle charging systems

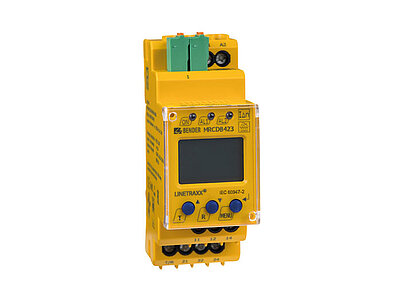

LINETRAXX® MRCDB423
Modular residual current device type B for additional protection (protection against indirect contact) in earthed systems (TN and TT systems)
LINETRAXX® RCMA423
AC/DC ground-fault monitor
LINETRAXX® RCMA420
AC/DC ground-fault monitor
LINETRAXX® RCM420
AC ground-fault monitor
LINETRAXX® RCM410R-24/-2
Single-channel AC and pulsed DC sensitive residual current monitor for AC systems
benvac® RCMB121
AC/DC sensitive residual current monitoring for AC charge stations

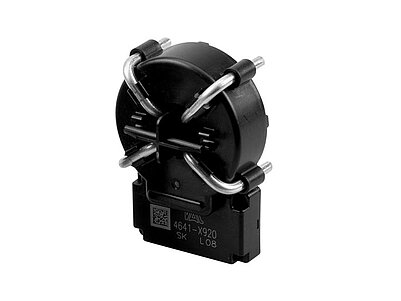

benvac® RCMB123
AC/DC sensitive residual current monitoring for AC charge stations
benvac® RDC121
DC sensitive residual current monitoring for AC charge stations

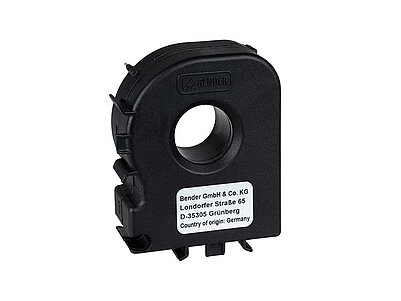

RCMB130 Séries
AC/DC sensitive residual current monitoring module for measuring AC and DC currents up to ±100 mA
