Healthcare Isolated Power Panels

Current production lead times for Isolated Power Panels are 2-5 weeks from order release depending on product configuration. Contact Bender for more info.

Standards such as NFPA 99 and CSA Z32 require isolated power systems in all areas deemed “wet procedure locations” in healthcare facilities. Isolated power systems offer an invaluable advantage - early detection of ground faults allows for critical systems to remain online in a single fault condition.

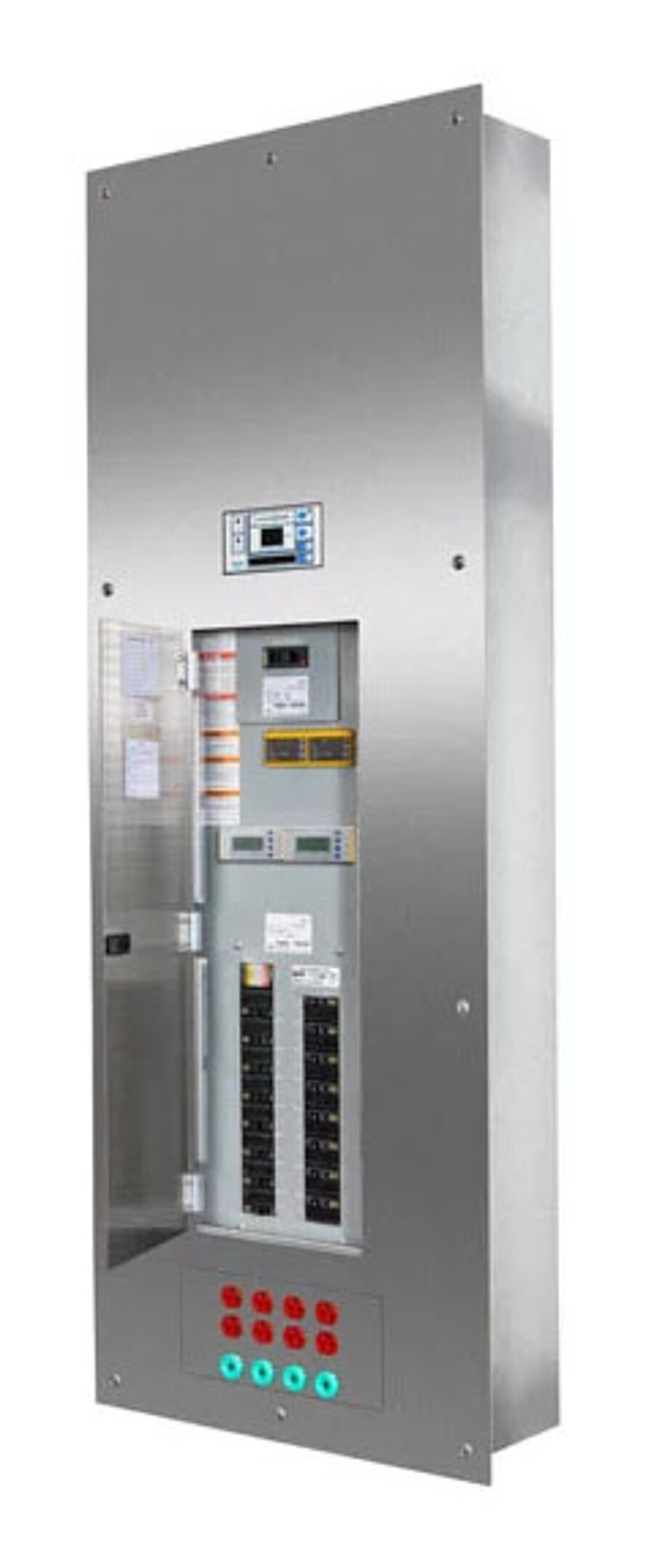

Bender isolated power panels provide isolated power to electrical systems in operating rooms and other critical care areas. Utilizing the latest in technology, Bender equipment ensures that electrical ground faults are detected and located fast and automatically, in compliance with the latest standards and code requirements.

Bender provides advanced electrical safety technology to the healthcare industry, including:

  • Modular system allows for easy future system upgrading.
  • Adjustable electronic trip options available for achieving 01.s system coordination
  • Front trim features completely concealed hinge when closed, allowing for easy cleaning and periodic maintenance.
  • The latest in line isolation monitoring technology, providing advanced warning of faults to help reduce downtime and increase operational efficiencies
  • Supplemental alarms including transformer load, temperature, and voltage to mitigate risk of electrical shock and fire
  • Fault Location System – Locate ground faults quickly and automatically for individual branch circuits while the system remains energized (No opening breakers required)
  • Branch Load Monitoring – monitor the load current of each branch circuit; individually adjustable alarm levels available
  • Communications Gateway – provides integrated web service for viewing status and changing settings.
  • Provisions for hospital grade receptacles and/or ground jacks directly on front of panel
  • On-site service and support
  • Equipment designed in strict compliance with many electrical codes and standards, including NFPA 99, NFPA 70, CSA Z32, UL 1047, and ISO9001:2015 quality management system.
  • Designed and assembled in the USA
  • Industry-leading, standard 5-year limited warranty on all panels

In a hurry? Ask about our quick ship options to get your panels shipped in less than 72 hours!

Backbox
All backboxes are fabricated from minimum 14GA galvanized steel. Surface mounted  enclosures are finished with a coat of hospital ivory baked enamel or equivalent.

Front Trim
Manufactured from minimum 14GA type 304 stainless steel with #4 brushed finish, the front trim contains a fully concealed, lift-off style hinge and a breaker panel door with hidden hinges and a flush mounted key lock covering the loadcenter. A flush mounted front trim extends 1“ on all sides of the backbox. For  surface-mounted panel boards, the front trim has the same dimensions as the enclosure.

Isolation Transformer
Isolation transformers are available with various primary and secondary single-phase volt-ages. See ordering information for available primary and secondary voltages.

Line Isolation Monitor

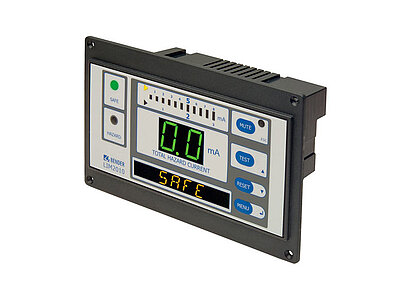

The Bender LIM2010 series Line Isolation Monitor provides both digital and analog  displays. The LIM is available with readouts and response values of 2 mA or 5 mA. The LIM2010 utilizes a unique measuring principle and is capable of detecting all combinations of capacitive and resistive faults, including balanced, unbalanced, and hybrid faults. A  self-test and self-calibration function is included.

The LIM2010 can monitor for additional alarms, including over- and under voltage, load monitoring, over-temperature, and more. The LIM2010 may be combined with an installed Bender EDS series module to create a ground fault location system. For more information, refer to the LIM2010 technical bulletin (document number NAE2022010).

Loadcenter
The loadcenter is an integral part of isolated power panels. Included is a primary circuit breaker which provides protection for the isolation transformer. All isolated power panels may be configured with either plug-in (snap-in) or bolt-on branch circuit breakers.

Questions? Contact us!

Category
Type
Reset

9 Products found

LIM2010

Line Isolation Monitor

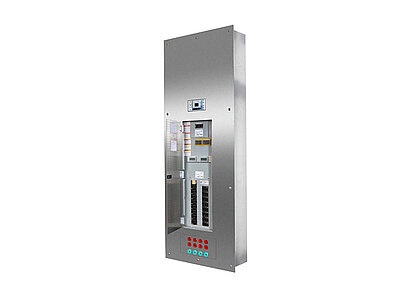

Modular Isolation Power Panels (MIP & MIE)

Complete modular isolation power systems for healthcare facilities

Modular Dual Voltage Isolation Power Panels (MID)

Modular dual output voltage power systems for healthcare facilities

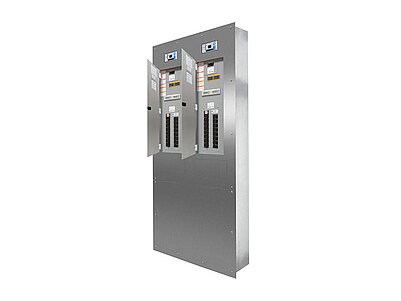

Modular Dual System Isolation Power Panels (MIX)

Modular dual system power systems for healthcare facilities

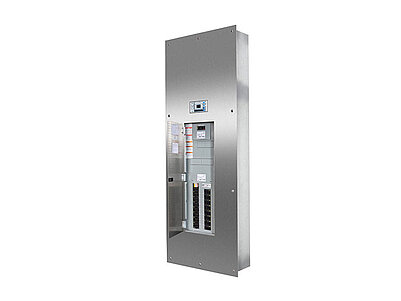

Modular Portable X-Ray/Laser Control Isolation Power Panels (MIC)

Modular PLC controlled power systems for healthcare facilities

GPM Series

Ground power modules for healthcare facilities

LT3000

- This device series is in the discontinuation phase. -

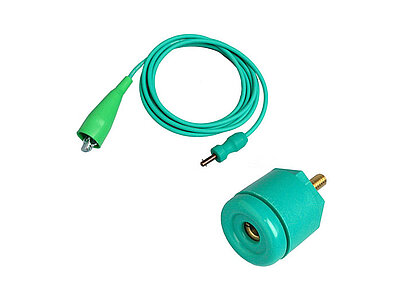

HGC and HGJ Series

Hospital grade ground jacks and ground cords

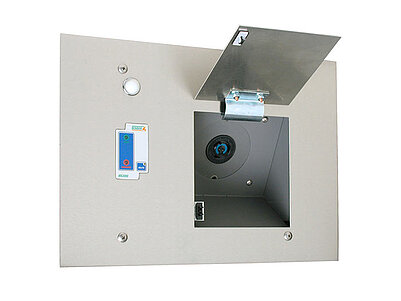

XRM Series

X-ray / laser receptacle modules for healthcare facilities

LIM2010

Line Isolation Monitor

Details
Modular Isolation Power Panels (MIP & MIE)

Complete modular isolation power systems for healthcare facilities

Details
Modular Dual Voltage Isolation Power Panels (MID)

Modular dual output voltage power systems for healthcare facilities

Details
Modular Dual System Isolation Power Panels (MIX)

Modular dual system power systems for healthcare facilities

Details
Modular Portable X-Ray/Laser Control Isolation Power Panels (MIC)

Modular PLC controlled power systems for healthcare facilities

Details
GPM Series

Ground power modules for healthcare facilities

Details

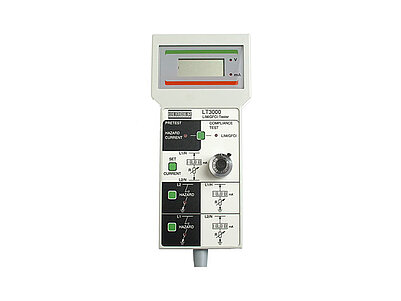

LT3000
