Ground-Fault Monitoring, Ungrounded
Early detection of ground faults on ungrounded systems allows critical systems to remain online while faults are identified and resolved. By continuously monitoring the system's insulation resistance, Bender's ground-fault detectors can provide early indication of both immediate and trending ground faults before leakage current may be of concern.
Bender's advanced insulation monitoring technology detects symmetrical and asymmetrical faults on both AC and DC systems, as well as systems with variable frequency drives and other power conversion equipment. When the configurable discrete alarm value is exceeded, it activates a variety of outputs to ensure technicians are notified. The patented Bender measurement signal works similar to a ‘megger’ but while the system is energized and online.
27 Products found
ISOMETER® iso685 Series
Ground-fault detector for ungrounded AC/DC systems
ISOMETER® iso685-…-B
Ground-fault monitoring device for demanding applications, variant with integrated system isolating switches
ISOMETER® iso685-…-P
Ground-fault monitoring device for demanding applications, variant with integrated system isolating switches and locating current injector

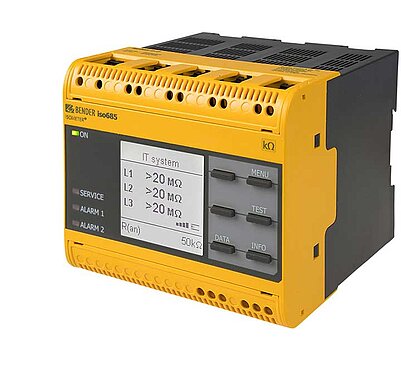

ISOMETER® isoNAV685-D
Ground-fault monitoring device with instantaneous tripping, frequency nominal system voltage 60 Hz
ISOMETER® isoHR685W
Ground-fault detector for subsea cable monitoring
ISOMETER® isoRW685W-D
Ground-fault monitoring device tailored to the requirements of railway rolling stock applications
ISOMETER® isoRW685W-D-B
Insulation monitoring device especially for railway applications

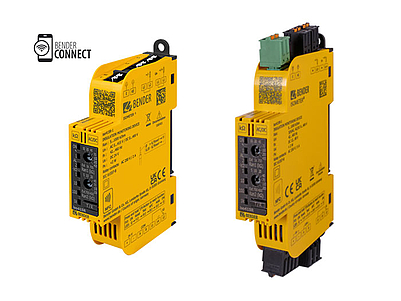

ISOMETER® iso415R Ground Fault Monitoring Device
Insulation monitoring device for unearthed AC, AC/DC and DC main and control circuits

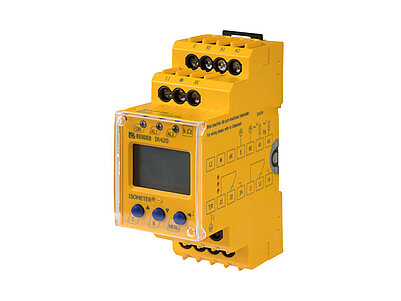

ISOMETER® IR420-D4
Ground-fault monitoring device for ungrounded AC control circuits

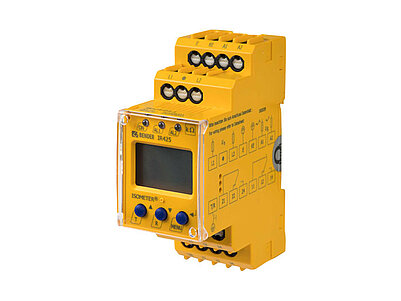

ISOMETER® IR425-D4
Ground-fault monitoring device for ungrounded AC/DC control circuits

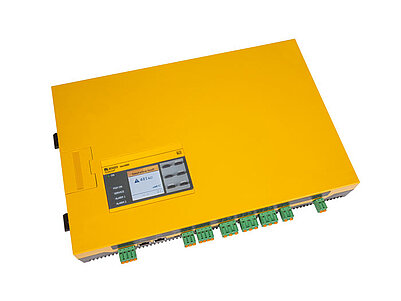

ISOMETER® iso1685DP/isoHV1685D/isoLR1685DP
Insulation monitoring device for unearthed AC, AC/DC and DC power supplies (IT systems)
ISOMETER® isoHR1685DW–925
Insulation monitoring device for mobile, insulated elevating work platforms

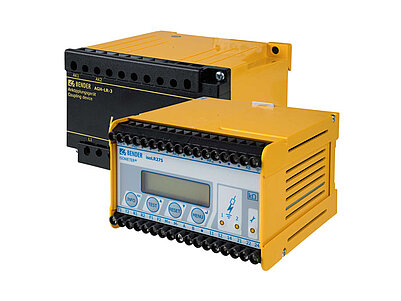

ISOMETER® isoLR275 with AGH-LR
Ground-fault monitoring device for installations with a low-resistance insulation level
ISOMETER® isoPV with AGH-PV
Ground-fault monitoring device for photovoltaic systems up to AC 793 V/DC 1100 V

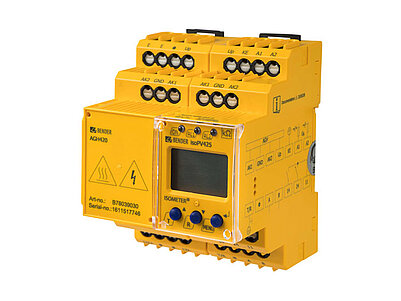

ISOMETER® isoPV425 with AGH420
Ground-fault monitoring device for photovoltaic systems up to AC 690 V/DC 1000 V
ISOMETER® isoPV1685DP
Insulation monitoring device for unearthed systems in photovoltaic systems

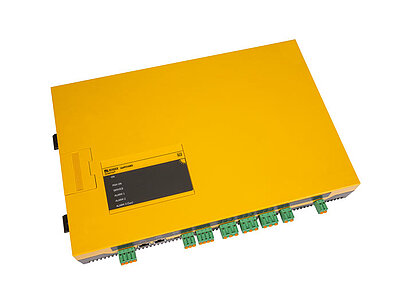

ISOMETER® isoPV1685 Series
Ground-fault monitoring device for DC systems up to 1500 V in photovoltaic systems

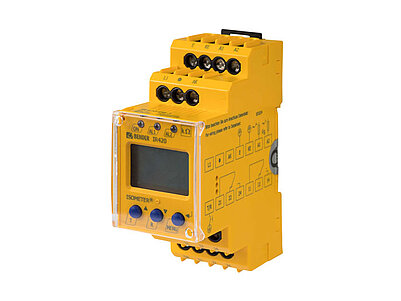

ISOMETER® IR420-D6
Offline monitor for de-energized AC, DC and 3(N)AC loads in solidly grounded and ungrounded systems
ISOMETER® IR423
Ground-fault monitoring device for mobile generators
ISOMETER® isoGEN423
Insulation monitoring device for unearthed AC, AC/DC and DC systems (IT systems) up to 3(N)AC, AC 400 V, DC 400 V

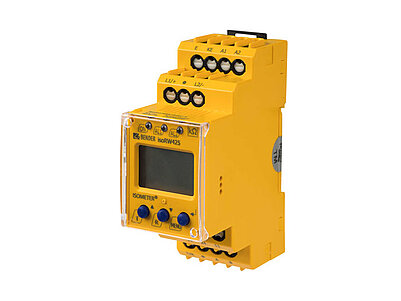

ISOMETER® isoRW425
Ground-fault monitoring device for railway applications up to AC/DC 440 V

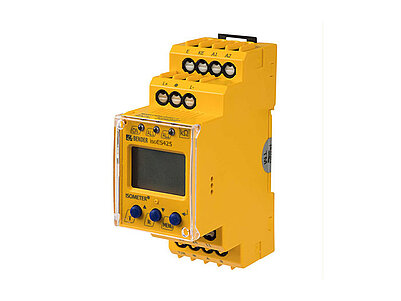

ISOMETER® isoES425
Insulation monitoring device for unearthed AC, AC/DC and DC systems (IT systems) for energy storage devices up to AC/DC 400 V
ISOMETER® isoHV425 with AGH422
Insulation monitoring device for unearthed AC, AC/DC and DC systems (IT system)

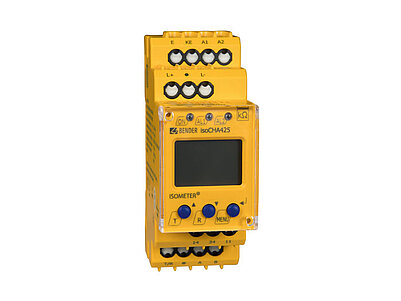

ISOMETER® isoCHA425
Insulation monitoring device for unearthed DC systems (IT systems) DC 0 V to 400 V. Suitable for DC charging stations according to CCS or CHAdeMO

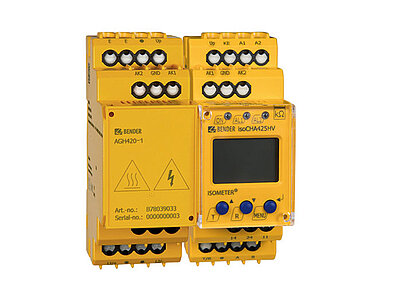

ISOMETER® isoCHA425HV with AGH420-1/AGH421-1
Insulation monitoring device with coupling device for unearthed DC systems (IT systems) DC 0 V to 1000 V Suitable for DC charging stations according to CCS or CHAdeMO

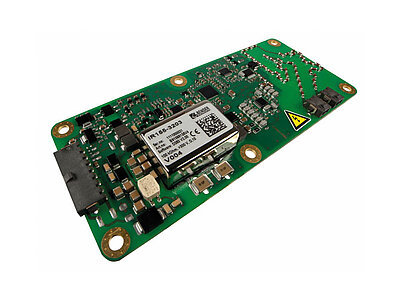

ISOMETER® IR155 03/04 Series
Ground-fault monitoring device for ungrounded DC drive systems in electric vehicles

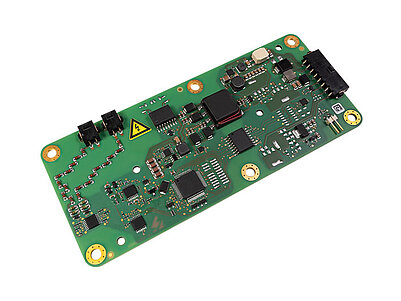

ISOMETER® iso175
Insulation monitoring device for unearthed drive systems (IT systems) in electric and hybrid vehicles
