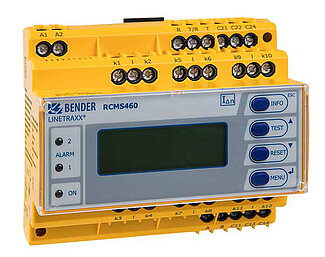

LINETRAXX® RCMS460-D Blindspot®
- Multi-channel ground-fault monitoring relay for grounded and high-resistance-grounded AC/DC systems
- Monitor up to twelve separate channels with individually adjustable alarm trip values
- Digital display with real-time readings and on-board menu
- Harmonics analysis and selectable filtering options
- Contact outputs and compatibility with Ethernet and Modbus communication gateways
The RCMS460 series provides ground-fault monitoring for up to twelve separate systems or channels in grounded and high-resistance grounded, AC/DC, single-phase or three-phase systems. The RCMS460 is also compatible with systems that contain power conversion equipment, such as variable frequency drives.
Each channel has an independently adjustable trip value. For AC systems, the trip value is adjustable from 6 mA to 20 A. For DC and mixed AC/DC systems, the trip value is adjustable from 10 mA to 10 A. Each channel is individually monitored with a connected current transformer, available in a wide range of sizes, shapes, and core types.
Offering robust ground fault protection, three separate time delays are available - a pickup delay, startup delay, and delay on reset. Advanced harmonics analysis and filtering options allow for tailoring use to specific application requirements.
The on-board LCD display shows a detailed system overview, including a chart showing measured ground-fault current in real-time, individual alarm messages for each channel, and an easy-to-use menu for adjusting settings. Advanced harmonics analysis and filtering options allow for tailoring the relay's monitoring capabilities to specific application requirements.
Two configurable Form-C (SPDT) outputs trigger on alarm activation. The RCMS460 is compatible with Bender's communication gateways for connecting to Ethernet and Modbus networks.
- Multi-channel ground-fault monitoring relay for grounded and high-resistance-grounded AC/DC systems
- Monitor up to twelve separate channels with individually adjustable alarm trip values
- Digital display with real-time readings and on-board menu
- Harmonics analysis and selectable filtering options
- Contact outputs and compatibility with Ethernet and Modbus communication gateways
The RCMS460 series provides ground-fault monitoring for up to twelve separate systems or channels in grounded and high-resistance grounded, AC/DC, single-phase or three-phase systems. The RCMS460 is also compatible with systems that contain power conversion equipment, such as variable frequency drives.
Each channel has an independently adjustable trip value. For AC systems, the trip value is adjustable from 6 mA to 20 A. For DC and mixed AC/DC systems, the trip value is adjustable from 10 mA to 10 A. Each channel is individually monitored with a connected current transformer, available in a wide range of sizes, shapes, and core types.
Offering robust ground fault protection, three separate time delays are available - a pickup delay, startup delay, and delay on reset. Advanced harmonics analysis and filtering options allow for tailoring use to specific application requirements.
The on-board LCD display shows a detailed system overview, including a chart showing measured ground-fault current in real-time, individual alarm messages for each channel, and an easy-to-use menu for adjusting settings. Advanced harmonics analysis and filtering options allow for tailoring the relay's monitoring capabilities to specific application requirements.
Two configurable Form-C (SPDT) outputs trigger on alarm activation. The RCMS460 is compatible with Bender's communication gateways for connecting to Ethernet and Modbus networks.
Features
- Multi-channel ground-fault protection for solidly and high-resistance grounded AC and DC systems, single-phase and three-phase
- Meets or exceeds code requirements for ground-fault detection on grounded AC and DC systems where applicable
- Individually monitor up to twelve systems / circuits from one relay
- Detailed digital display showing measured values in real-time
- Individually adjustable trip values, as low as 6 mA and as high as 20 A
- Connects to current transformers available in a wide range of sizes, shapes, and core types
- On-board test and reset button with connections for external activation
- Adjustable time delays (pickup, startup, on reset)
- Latching or non-latching operation
- Two Form-C (SPDT) alarm outputs, operating normally energized (failsafe) or de-energized (non-failsafe)
- Compatible with Bender's communication gateways for connection to Ethernet or Modbus networks
Applications
- Ground fault monitoring on grounded and high-resistance grounded AC/DC systems
- Systems with variable frequency drives, inverters, and other power conversion equipment
- General purpose DC systems, per NEC 250.167(B)
- General power distribution
- Motors and motor control centers
- Control systems
- Heat trace systems, per NEC 427.22 and CEC 62-116
- Solar arrays, per NEC 690.41(B) (2017 edition), NEC 690.5 (2014 edition), and CEC 64-064(4)
- Energy storage systems
LINETRAXX® RCMS460-D Blindspot® Variant(s)
| Part No. | Supply Voltage | Output Contacts | Ordering No. |
|---|---|---|---|
| RCMS460-D-1 Blindspot® | 16-72 VAC (42-460 Hz), 16-94 VDC | 2 Form-C | B94053001 |
| RCMS460-D-2 Blindspot® | 70-276 VAC (42-460 Hz), 70-276 VDC | 2 Form-C | B94053002 |
Optional Accessories for LINETRAXX® RCMS460-D Blindspot®
Power supply
| Type | Art. No. |
|---|---|
| STEP-PS/1 AC/24 DC/0.5 (Power supply unit for supplying up to 4 CTUB100 series measuring current transformers)* | B94053110 |
| STEP-PS/1 AC/24 DC/1.75 (Power supply unit for supplying up to 14 CTUB100 series measuring current transformers)* | B94053111 |
| STEP-PS/1 AC/24 DC/4.2 (Power supply unit for supplying up to 34 CTUB100 series measuring current transformers)* | B94053112 |
| DI-1PSM (RS-485 repeater) | B95012044 |
* Not usable with CTUB101
Repeaters and interface converters
| Type | Description | Supply voltage US* | Art. No. |
|---|---|---|---|
| COM465IP | Condition Monitor with integrated gateway: Bender system/Ethernet | AC/DC 24…240 V, DC, 50…60 Hz | B95061065 |
| COM465IP Function package A | Individual text messages for all devices/channels, device failure monitoring, email in the event of an alarm | -- | B75061011 |
| COM465IP Function package B | Modbus TCP server for max. 98 * 139 BMS nodes as well as BCOM and universal measuring devices, SNMP server | -- | B75061012 |
| COM465IP Function package C | Parameter setting of BMS devices as well as BCOM and universal measuring devices | -- | B75061013 |
| COM465IP Function package D | Visualisation of Bender systems, System visualisation | -- | B75061014 |
| COM465IP Function package E | Virtual devices | -- | B75061015 |
| COM465IP Function package F | Integration of third-party devices | -- | B75061016 |
| CP907-I | Condition Monitor for the connection of Bender BMS devices and universal measuring devices to TCP/IP networks | -- | B95061031 B95061032 |
| CP915-I | Condition Monitor for the connection of Bender BMS devices and universal measuring devices to TCP/IP networks | -- | B95061033 B95061034 |
* Absolute values
Alarm indicator and test combination
| Type | Art. No. |
|---|---|
| MK2430-11 | B95100001 |
| MK2430-12 | B95100002 |
| MK2430P-11 | B95100003 |
| MK2430P-12 | B95100004 |
| MK2430A-11 | B95100005 |
| MK2430A-12 | B95100006 |
| MK2430PA-11 | B95100007 |
| MK2430PA-12 | B95100008 |
| MK2430S-11 | B95100011 |
| MK2430S-12 | B95100012 |
Pulsating current sensitive measuring current transformers for RCMS460/490
| Type | Internal diameter/mm | Type of construction | Art. No. |
|---|---|---|---|
| CTAC20 | ø 20 | circular | B98110005 |
| CTAC35 | ø 35 | circular | B98110007 |
| CTAC60 | ø 60 | circular | B98110017 |
| CTAC120 | ø 120 | circular | B98110019 |
| CTAC210 | ø 210 | circular | B98110020 |
| WR70x175S | 70 x 175 | rectangular | B11738 |
| WR70x175SP | 70 x 175 | rectangular | B11790 |
| WR115x305S | 115 x 305 | rectangular | B11739 |
| WR115x305SP | 115 x 305 | rectangular | B11791 |
| WR150x350S | 150 x 350 | rectangular | B911740 |
| WR150x350SP | 150 x 350 | rectangular | B911792 |
| WR200x500S | 200 x 500 | rectangular | B911763 |
| WR200x500SP | 200 x 500 | rectangular | B911793 |
| WS20x30 | 20 x 30 | split-core | B98080601 |
| WS50x80 | 50 x 80 | split-core | B98080603 |
| WS80x120 | 80 x 120 | split-core | B98080606 |
AC/DC sensitive measuring current transformers for RCMS460/490
| Type | Internal diameter/mm | Type of construction | Art. No. |
|---|---|---|---|
| CTUB102-CTBC20 | ø 20 | circular | B78120011 |
| CTUB102-CTBC20P | ø 20 | circular | B78120021 |
| CTBS25 | ø 25 | circular | B98120060 |
| CTUB102-CTBC35 | ø 35 | circular | B78120013 |
| CTUB102-CTBC35P | ø 35 | circular | B78120023 |
| CTUB102-CTBC60 | ø 60 | circular | B78120015 |
| CTUB102-CTBC60P | ø 60 | circular | B78120025 |
| CTUB102-CTBC120 | ø 120 | circular | B78120017 |
| CTUB102-CTBC120P | ø 120 | circular | B78120027 |
| CTUB102-CTBC210 | ø 210 | circular | B78120019 |
| CTUB102-CTBC210P | ø 210 | circular | B78120029 |
Connection cable for CTUB100 series measuring current transformers
| Type | Length/m | Art. No. |
|---|---|---|
| CTXS-100 | 1 | B98110090 |
| CTXS-250 | 2,5 | B98110091 |
| CTXS-500 | 5 | B98110092 |
| CTXS-1000 | 10 | B98110093 |
Flexible measuring current transformers (pulsed DC sensitive) for RCMS460/490
| Type | Internal diameter/mm | Supply voltage US | Art. No. |
|---|---|---|---|
| WF170-1 | 170 | DC 9,6…94 V / AC 16…72 V, 42…460 Hz | B78080201 |
| WF170-2 | 170 | DC 70…300 V / AC 70…300 V, 42…460 Hz | B78080202 |
| WF250-1 | 250 | DC 9,6…94 V / AC 16…72 V, 42…460 Hz | B78080203 |
| WF250-2 | 250 | DC 70…300 V / AC 70…300 V, 42…460 Hz | B78080204 |
| WF500-1 | 500 | DC 9,6…94 V / AC 16…72 V, 42…460 Hz | B78080205 |
| WF500-2 | 500 | DC 70…300 V / AC 70…300 V, 42…460 Hz | B78080206 |
| WF800-1 | 800 | DC 9,6…94 V / AC 16…72 V, 42…460 Hz | B78080207 |
| WF800-2 | 800 | DC 70…300 V / AC 70…300 V, 42…460 Hz | B78080208 |
| WF1200-1 | 1200 | DC 9,6…94 V / AC 16…72 V, 42…460 Hz | B78080209 |
| WF1200-2 | 1200 | DC 70…300 V / AC 70…300 V, 42…460 Hz | B78080210 |
WF… series measuring current transformers consist of one flexible W…F series measuring current transformer and one RCC420 signal converter.
Accessories
| Type | Art. No. |
|---|---|
| Mounting clip for enclosure XM420 (1 piece per device) | B98060008 |
| XM460 mounting frame | B990995 |
| XM490 mounting frame | B990996 |
