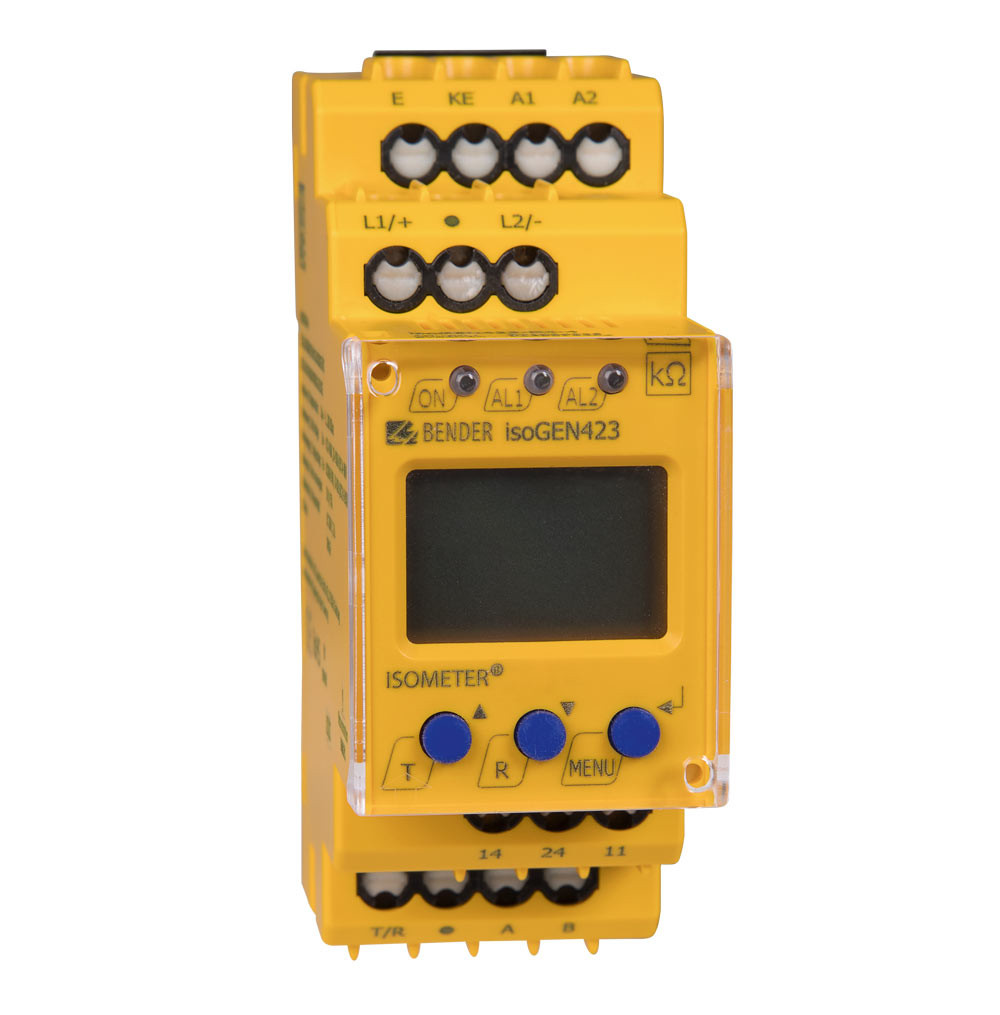

ISOMETER® isoGEN423
- Insulation monitoring device for mobile generators
- Protective isolation with insulation monitoring and shutdown
- Two response values with settings between 5 and 200 kΩ (Factory settings 46 kΩ and 23 kΩ)
- Communications interface supporting Modbus RTU, IsoData, and BMS
- Overvoltage and undervoltage protection
The isoGEN423 monitors the insulation resistance of ungrounded AC, AC/DC and DC systems with nominal system voltages of 0…400 V. The monitored system can be single-phase AC, 3- or 4-wire AC, AC/DC mixed-phase, or DC.
Automatically adapts to the maximum permissible system-leakage capacitance of 5 μF. DC components existing in AC systems do not influence the operating characteristics, when a minimum load current of DC 10 mA flows. Using a separate supply voltage allows de-energized systems to be monitored.
- Insulation monitoring device for mobile generators
- Protective isolation with insulation monitoring and shutdown
- Two response values with settings between 5 and 200 kΩ (Factory settings 46 kΩ and 23 kΩ)
- Communications interface supporting Modbus RTU, IsoData, and BMS
- Overvoltage and undervoltage protection
The isoGEN423 monitors the insulation resistance of ungrounded AC, AC/DC and DC systems with nominal system voltages of 0…400 V. The monitored system can be single-phase AC, 3- or 4-wire AC, AC/DC mixed-phase, or DC.
Automatically adapts to the maximum permissible system-leakage capacitance of 5 μF. DC components existing in AC systems do not influence the operating characteristics, when a minimum load current of DC 10 mA flows. Using a separate supply voltage allows de-energized systems to be monitored.
Features
- Monitoring the insulation resistance for unearthed AC/DC systems
- Measurement of the system voltage (true r.m.s.) with undervoltage and overvoltage detection
- Measurement of DC system voltages to earth (L1+/PE and L2-/PE)
- Two operating modes: GEn and DC
- Automatic adaptation to the system leakage capacitance up to 5 μF
- Selectable start-up delay, response delay and delay on release
- Two separately adjustable response value ranges of 5…200 kΩ (Alarm 1, Alarm 2)
- Alarm signalling via LEDs (AL1, AL2), a display and alarm relays (K1, K2)
- Automatic device self test with connection monitoring
- Selectable N/C or N/O relay operation
- Measured value indication via multi-functional LCD
- Fault memory can be activated
- RS-485 (galvanically isolated) including the following protocols:
- BMS interface (Bender measuring device interface) for data exchange with other Bender components
- Modbus RTU
- IsoData (for continuous data output) - Password protection to prevent unauthorised parameter changes
Applications
- AC main circuits up to 400 V
- DC main circuits up to 400 V
- Generators according to DIN VDE 0100-551
ISOMETER® isoGEN423 Variant(s)
| Type | Version | Art. No. |
|---|---|---|
| isoGEN423-D4-4 | Push-wire terminal | B71036325 |
| isoGEN423-D4W-4 | Push-wire terminal | B71036325W |
Optional Accessories for ISOMETER® isoGEN423
| Type | Art. No. |
|---|---|
| Mounting clip for screw mounting (one piece per device) | B98060008 |
| Mounting frame XM420 | B990994 |
Downloads for ISOMETER® isoGEN423
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| UKCA - isoxx425 | Declarations of Conformity | 142.1 KB | 2023/06/1212.06.2023 | ||
| isoXX425 | CE Declarations of Conformity | 146.2 KB | 2023/07/1414.07.2023 | ||
| isoGEN423 | Quickstarts | 986.4 KB | EN | 2024/01/3030.01.2024 | D00221 |
| isoGEN423 | Manuals | 2.3 MB | EN | 2024/05/1414.05.2024 | D00221 |
| isoGEN423 | Datasheets | 1.5 MB | EN | 2024/08/0707.08.2024 | D00221 |
