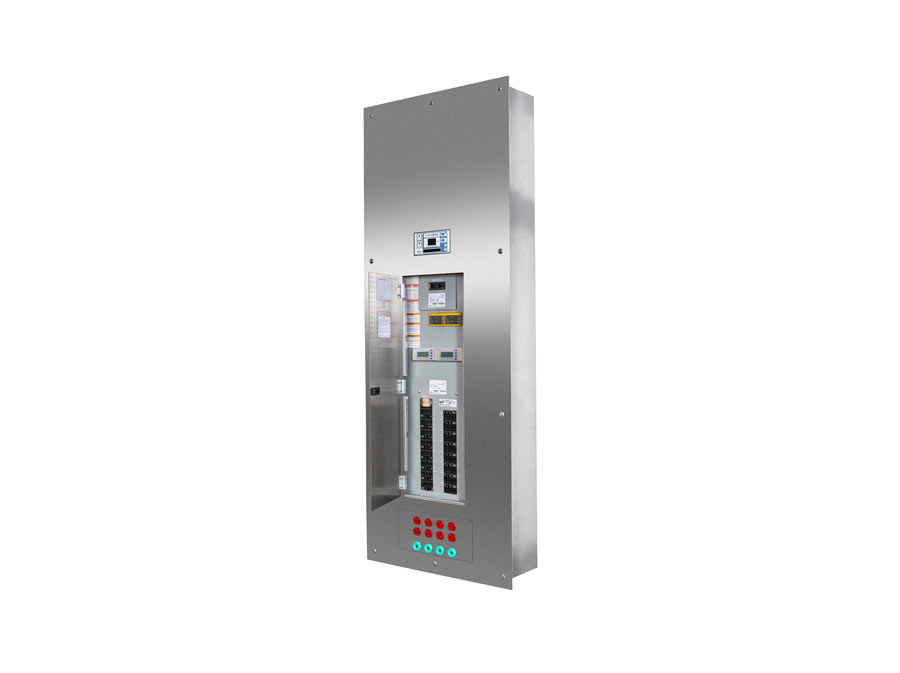

Modular Isolation Power Panels (MIP & MIE)

Bender’s standard hospital panel provides isolated power service and protection to operating rooms and other critical care areas designated as wet procedure locations. Designed in strict compliance with requirements including NFPA 99, NFPA 70, UL 1047, and UL 1022, BENDER isolated power panels offer the most up-to-date technology for all isolated power distribution requirements. Panels include:

Standard Features

• Isolation transformer with corresponding main circuit breaker
• Bender LIM2010 Line Isolation Monitor (LIM), for effective LIM Testing
• Reference Ground Bus
• Bolt-on style load center
• 16, 2-pole 20A branch circuit breakers (consult factory for alternative configurations)
• Front trim with door-in-door concealed hinge

Advanced Optional Features

• Provision(s) for receptacles and/or ground jacks
• Integrated ground fault location system
• Transformer load monitoring
• Individual branch circuit load monitoring
• Remote communication with standalone web server and building management system integration
• On-site services and support
