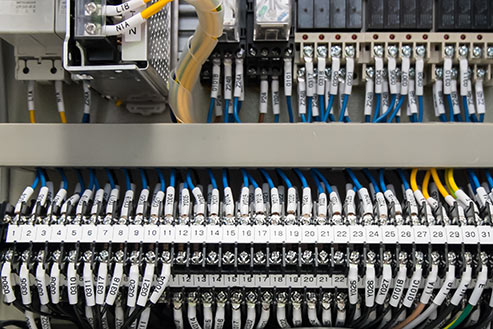

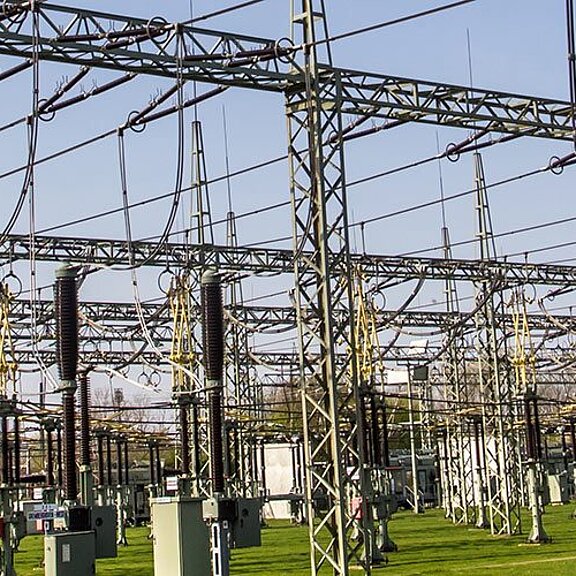

Control voltage circuits must be monitored for electrical safety; after all, an undetected electrical fault is as significant as unexpected system downtime and also significantly increases the fire risk. At the same time, unplanned service interventions can be expensive and time-consuming. Some transformer station insurers also demand effective condition monitoring systems. The Bender condition monitoring system gives you a clear overview of all the relevant data for your system.

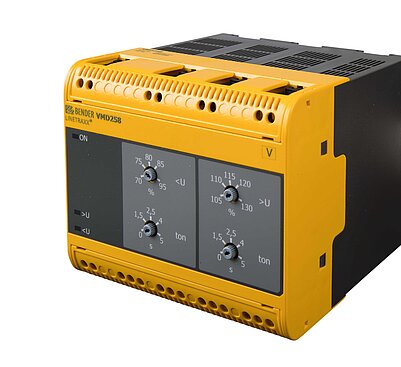

The VMD258 analog voltage relay monitors three-phase AC systems for under and overvoltage (window function). It does not need a neutral point connection and is therefore suitable for all 3AC systems. The supply voltage of the electronics is taken from the system to be monitored. The supply for the electronics, the relays and the connection for the external energy store are separated from the system with dual insulation. Special input transformers muffle the transfer of interference factors from the system. The response values for under and overvoltage and for response delays can be adjusted to any level.
